11/0.415 kV Distribution Transformer Bangladesh
High-efficiency 11/0.415 kV oil-immersed transformers for industrial & residential use in Bangladesh. Durable, reliable, and IEC-compliant solutions.
Powering Industry & Communities with Reliable Distribution Solutions

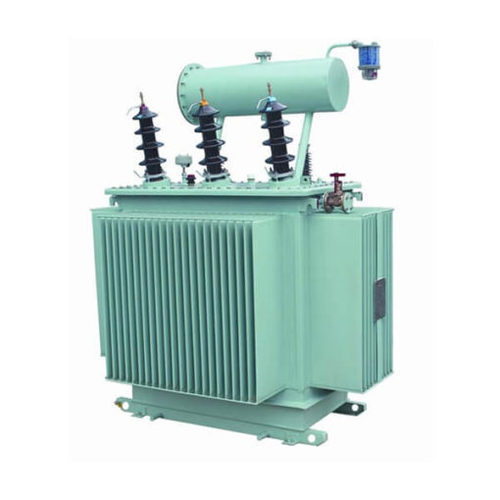

Regency Power Limited delivers high-performance 11/0.415 kV oil-immersed distribution transformers, engineered for both heavy industrial loads and reliable residential power distribution. Built to Tier-1 international standards, our transformers ensure maximum efficiency, durability, and a service life exceeding 30 years.
- KEMA / CESI Type Tested
- UL Compliant
- ISO 9001:2015 Certified
-
CORE & WINDING ARCHITECTURE
-
ROBUST CONSTRUCTION & THERMAL MANAGEMENT
-
PROTECTION & SAFETY
-
ENVIRONMENT
High-Efficiency Core Design
- Constructed using high-permeability Grain-Oriented Silicon Steel (Hi-B grade)
- Step-lap mitered joints reduce no-load losses and noise levels
- Ideal for urban and residential environments
Superior Copper Windings
- Manufactured from 9% pure oxygen-free copper
- Enhanced mechanical strength for short-circuit and surge resistance
- Optimized for stable voltage performance under varying loads
Vapor Phase Drying (VPD) Technology
- Moisture content maintained below 5%
- Prevents insulation aging and oil degradation
- Ensures long-term reliability and maintenance-free operation
Advanced Cooling & Heat Dissipation
- Corrugated walls or plate-type radiators for efficient heat transfer
- Hot-dip galvanized surfaces for corrosion resistance
Hermetically Sealed Tank Design
- Prevents contact between oil and atmosphere
- Eliminates oxidation and moisture contamination
- Extends transformer lifespan significantly
ONAN Cooling System
- Oil Natural Air Natural (ONAN) cooling
- No external power required
- Reliable performance during peak load conditions
Designed for modern grid requirements, our transformers support advanced monitoring and protection systems.
- Pressure Relief Devices (PRD)
Prevent tank rupture during internal faults - Oil & Winding Temperature Indicators (OTI/WTI)
Real-time monitoring with alarm contacts - Buchholz Relay Protection
Early detection of internal faults in conservator-type transformers - Smart Grid Compatibility (Optional)
- Digital oil level indicators
- Hot-spot temperature sensors
- SCADA integration capability
We prioritize sustainability and safety in every transformer we deliver.
- Eco-Friendly Insulation Fluids (Optional)
Synthetic & natural ester fluids (biodegradable, fire-resistant) - Leak-Proof Construction
Precision-engineered sealing systems ensure zero oil leakage - Sustainable Materials
Over 98% recyclable components (copper, steel, oil)
TECHNICAL DATA
Standards | IEC 60076, ANSI/IEEE, UL, KEMA, CESI |
Voltage Rating | 11/0.415 kV |
Application | Industrial, Residential, Commercial |
Mounting | Pole-Mounted / Ground-Mounted / Pad-Mounted |
HV Bushings | Porcelain / Plug-in (Elbow Type) |
LV Bushings | Porcelain / Epoxy Resin |
Vector Group | Dyn11 (Standard) / Custom |
Temperature Rise | Oil: 50K / Winding: 55K |
Insulation Class | Class A (105°C) |
Cooling | ONAN |
Surface Finish | Sa2.5 + Zinc Primer + Polyurethane Coating |
WHY CHOOSE REGENCY POWER
Regency Power Limited combines global engineering excellence with local expertise, ensuring unmatched value.
- Zero-Defect Manufacturing
CNC core cutting and automated winding processes - International Testing Standards
Routine and type testing (Losses, Ratio, IR, Load Test)
Third-party inspection by KEMA / CESI available - End-to-End Project Support
From design and engineering to delivery and commissioning - Competitive Pricing with Premium Quality
Ideal for both government and private sector projects
- Trusted distribution transformer supplier in Bangladesh
- Tier-1 engineering and manufacturing quality
- Competitive and project-friendly pricing
- Strong after-sales service and technical support
- End-to-end project capability
