Regency Power- Authorized Sales Partner of DTM Elektroteknik (Turkey) in Bangladesh
Regency Power Limited has been the authentic sales partner of DTM Elektroteknik San. ve Tic. A.Ş since 2011. Founded in 1977, DTM Elektroteknik began its journey with the production of electrical panels and thermal relays.
Over the decades, the company has become a global name in busbar trunking systems, providing reliable and efficient power distribution solutions from 25A to 6300A.
DTM’s products are manufactured in a 10,000 m² modern facility located in Alemdağ-Çekmeköy, Turkey, equipped with advanced technology and managed by a team of experienced professionals. All DTM busbar systems are manufactured in compliance with international standards and certified test documents, ensuring consistent quality and reliability.
PRODUCT SERIES
AB-E Series – 25A to 63A
SP-H Series – 100A to 160A
MP-H Series – 160A to 600A
HP-K Series – 400A to 6300A
The Smartest Way of Power Distribution
AB-E Series
AB-E DTM Busbar systems are used in places that need lighting and power between 25-63A.
TECHNICAL INFORMATION
The casing of the busbar trunking system is shaped from Galvanized Sheet in the profile machine and interlocked and its mechanical durability is increased.
The conductors are PVC insulated. Standard number of conductors are 4; L1, L2, L3, N+Pe (as housing). Optionally, 5-conductor Neutral conductor cross section is equal to phase conductors;All designs and tests have been carried out in accordance with IEC61439-1/6’ standard. Any busbar application can be mounted through the covered cable duct. Values such as smoke and light intensity can be controlled with the help of a PLC and Router. It is produced in accordance with ISO 9000 Standards and with a certified quality assurance system.
ADVANTAGES
Convenient
It is easily designed, power distribution and clean network structure, easy engineering and installation.
Fast
Quick assembly using very few tools Busbar systems noticeably reduce assembly time.
Flexible
It can be easily extended and modified in assemblies.

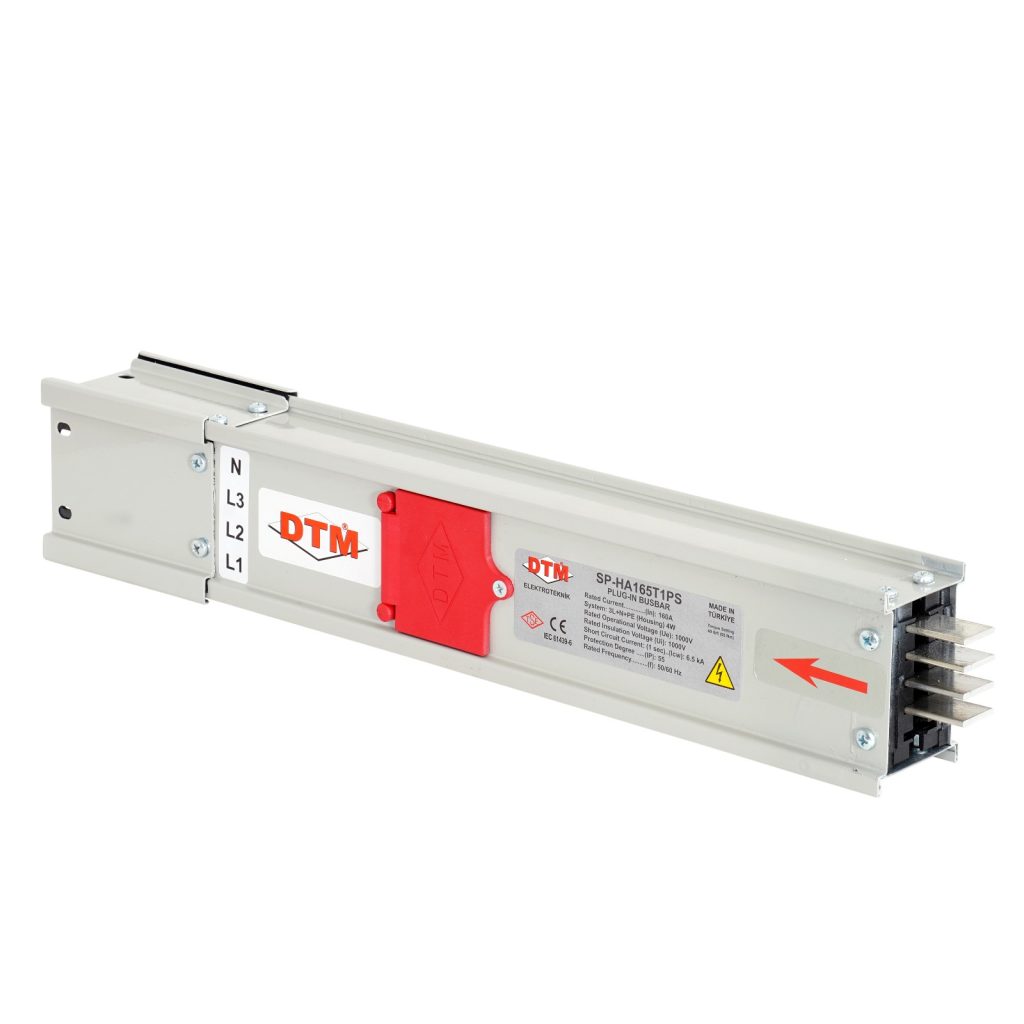

SP-H Series
GENERAL INFORMATIONN
DTM SP-H 100A -160A Busbar trunking systems are used as an power distribution line where there is a need for energy distribution.
The outer body is produced from standard galvanized sheet metal or RAL7038 painted (optional).
JOINT SLACK
Flame Retardant Tap-Off Boxes With the plug-in screw system, the assembly is done safely in a short time. It is used by tightening the screw with the nut.
ADDITIONAL BLOCK TIGHTENING VALUE: (20 Nm)
Flame Retardant Tap-Off Boxes
The body of the Tap-Off boxes are made of flame retardant V0-(v2) plastic materials. It is resistant to harsh environmental conditions and resistant to high temperatures.
It is possible to supply currents up to 80 A with Tap-Off boxes.
Tap-Off boxes are easily and safely installed without requiring any elements.

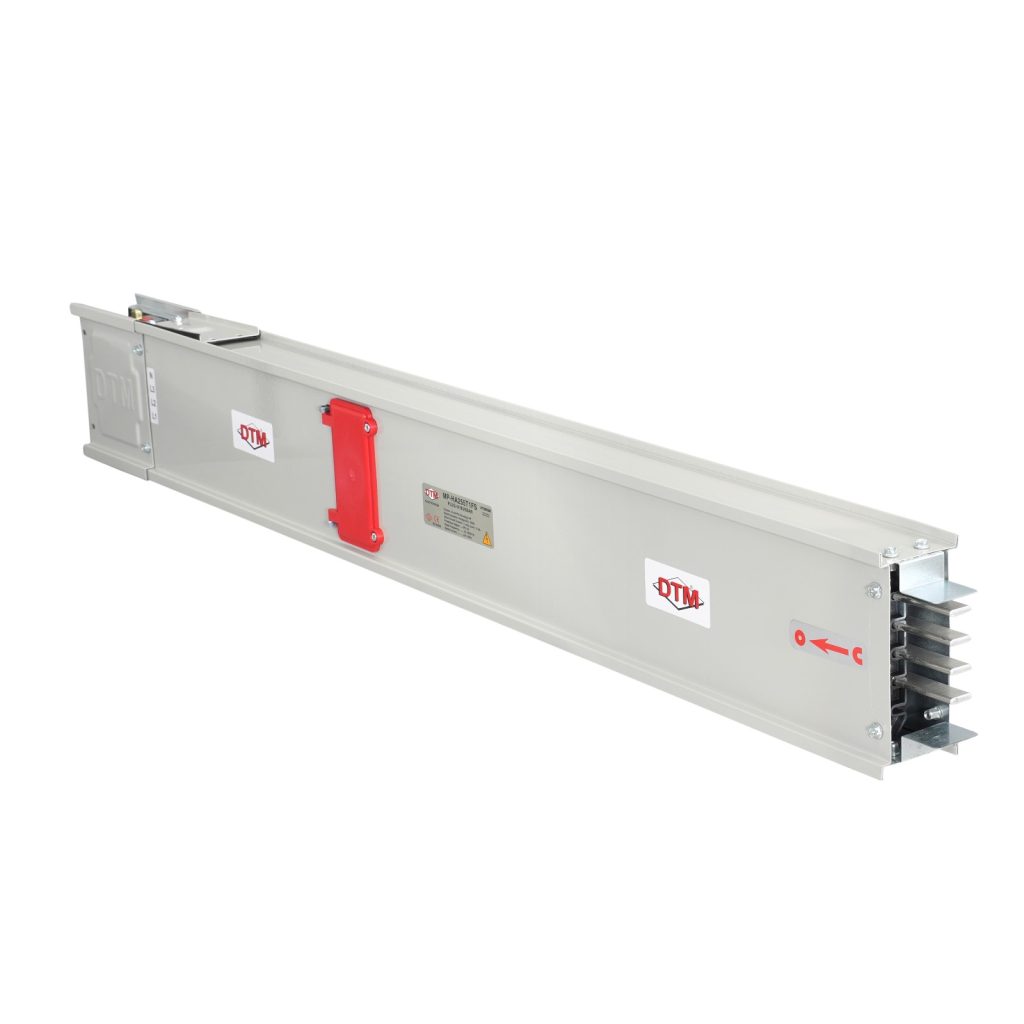

MP-H Series
GENERAL INFORMATIONN
MP-H Busbar trunking systems are systems with air insulated conductors in low voltage energy distribution lines. Plug-in production is produced with four plug-in points as standard. It is produced with aluminum or copper conductors between 160A- 600A. In the 5-pole full neutral configuration, the operating voltage is 1000 V. The case is produced as galvanized sheet in IP 55 protection class.
APPLICATIONS
Used in commercial centers, medium-sized industrial facilities, high-rise buildings, data centers.
PROTECTION
Plug-ins V2 are non-flammable, resistant to harsh environmental conditions and high temperatures. The gasketed protection cover made of flame retardant certified material is IP 55.

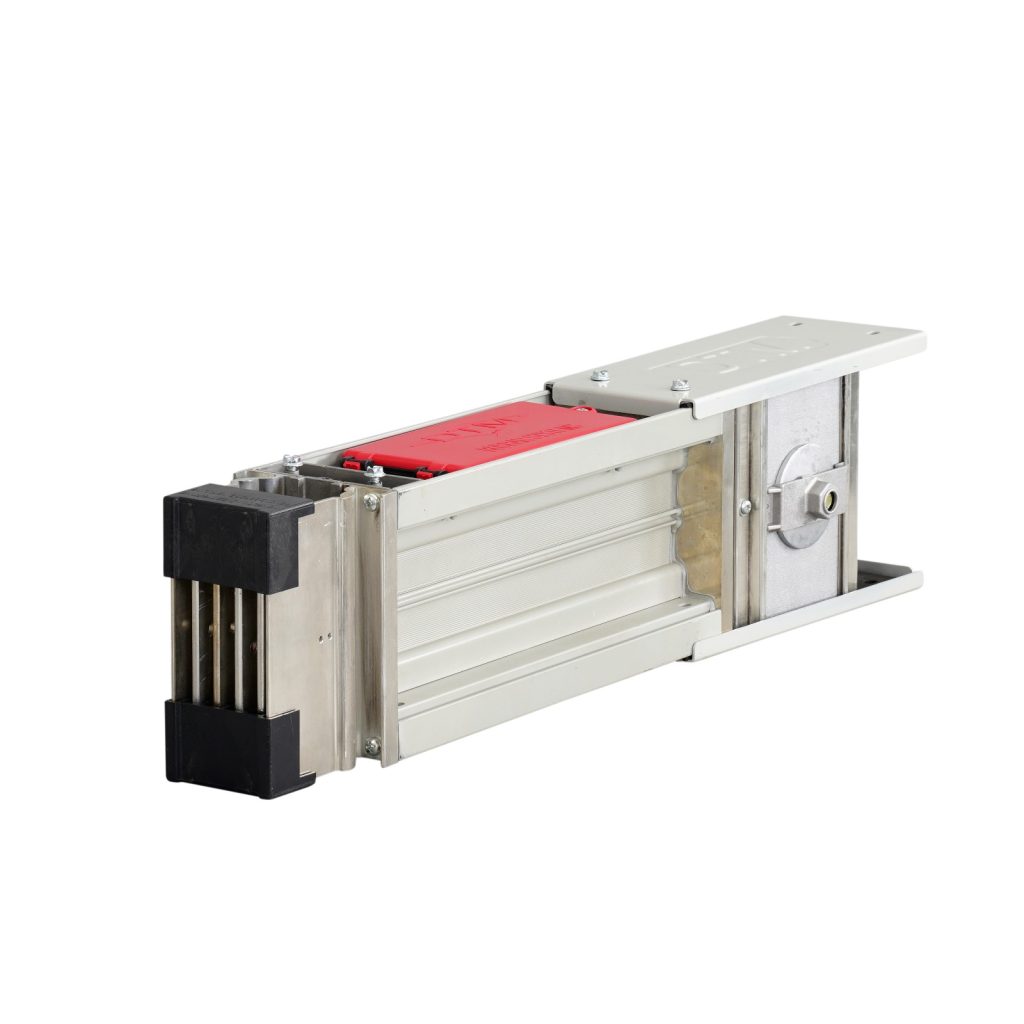

HP-K Series
GENERAL INFORMATIONN
They provide efficiency in low voltage distribution systems in industrial and commercial applications. Feeder and plug-in are produced with aluminum or copper conductors from 400 amps to 6300 amps. In the 3-pole or 4-pole full neutral configuration, the operating voltage is 1000 V. Standard production 3P+N+PE body grounding is 50% of the phase conductor. The case is produced as Aluminum. Standard production IP 55, IP 65 can be produced upon request.
SANDWITCH CONSTRUCTION
Feeder and Plug-in busbars are sandwich type systems that are easy to assemble. Due to its structure, the voltage drop characteristics are at minimum and it provides a regular low reactive power factor. Construction channels are designed as aluminum profile and upper and lower covers are aluminum. Hysteresis currents and Eddy currents are minimized by spreading them in the aluminum channel. In cases where 2 or 3 conductors are used per phase in Feeder and Plug-in lengths, parallelization is made at the end of each phase. (In the change of phases). The body of the plug-in lengths has windows with lids that allow flat mounting and exit of tap-offs. Additional accessories used for the feeder can also be used in Plug-in types. Plug-in and Feeder types can be mounted together.
FULL ENCLOSED CONSTRUCTION
Busbar systems have a fully closed design. This duct design does not reduce the electrical values and since there are no ventilation holes, the contact of the conductors with a foreign material is prevented. The heat dissipation spreads directly with the body close to the conductors.
BUSBAR FEATURES
*Voltage Drop
Due to its compact structure, it provides the most efficient transmission of power by minimizing the voltage drop due to its very low reactance.
*Joints
In external feeder busbars, the joints applied with a special gasket to prevent rain water from entering into it provide protection and smoothness in all conditions.
*Fitting
Elbows can be easily added with an additional block.
*Plug-In Points
Plug-ins are V2 (non-flammable), resistant to harsh environmental conditions and resistant to high temperatures. Sealed protection cover made of flame retardant certified material is IP 55. Jaws contact surfaces provide permeability thanks to the compression spring on the conductors.
FINISHING
- RAL 7038
- Electrostatic paint is applied in busbar duct systems.
